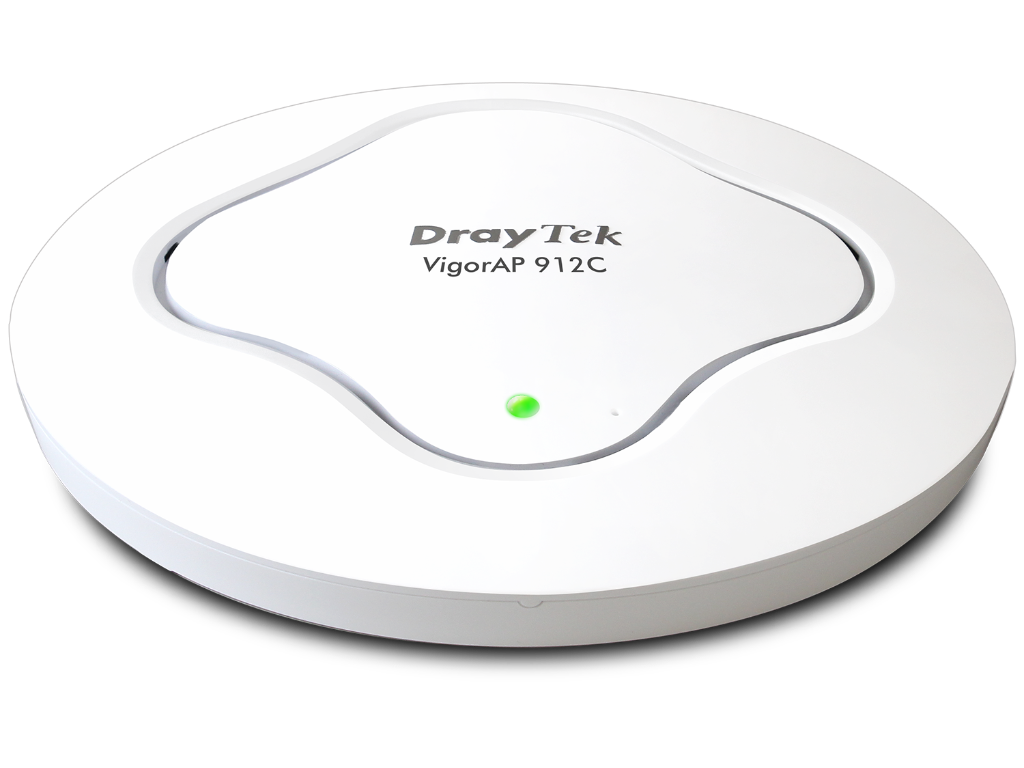

VigorAP 912C

規格

介面

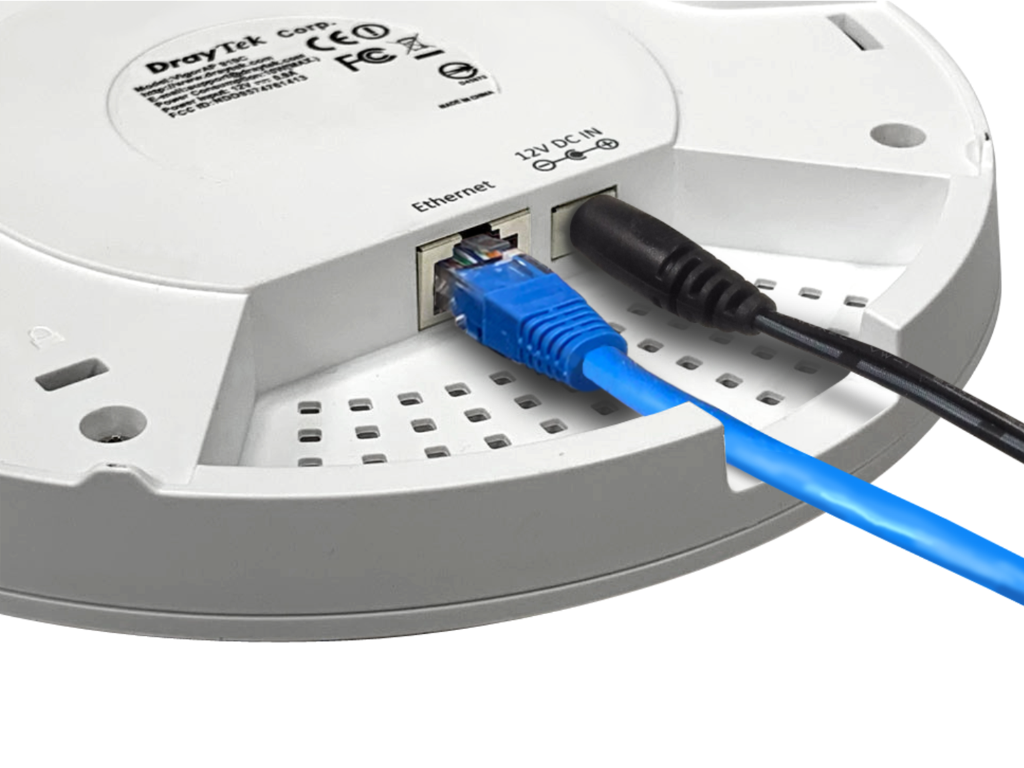

LAN埠 1x 10/100/1000M Base-T, RJ-45, supports 802.3af PoE
天線 2x 內建倒F型雙頻天線 (PiFA)
增益: 5 dBi for 5GHz, 3 dBi for 2.4GHz
電源孔 1
重置鍵 1
安全鎖 1
WLAN
2.4GHz標準 IEEE 802.11b/g/n 2x2 MIMO
5GHz標準 IEEE 802.11a/n/ac 2x2 MU-MIMO
2.4GHz最高速度 300 Mbps
5Hz最高速度 867 Mbps
連線設備數量 256 (每個頻段128個)
操作模式 AP, Mesh Root, Mesh Node, Range Extender
Roaming AP-Assisted Roaming, PMK-Caching, Pre-Authentication, 802.11r
Airtime Fairness
Band Steering
Auto Channel Selection
Max. Number of SSID 8 (4 per radio band)
WDS
Bandwidth Limit per Station
Client Number Limit Per radio, Per SSID
Connection Time Control
WMM
IGMP Snooping
Security
Security Mode WPA3, WPA3/WPA2, WPA2, WPA2/WPA, OWE, WPA, WEP, None
Authentication Personal, Enterprise
WPS PIN, PBC
Hidden SSIDs
MAC Address Filter Up to 256 entries
Wireless Client Isolation
Mobile Device Management
Application
Built-in RADIUS Server
RADIUS Proxy PEAP, EAP-TLS
Hotspot Web Portal
DHCP DHCP Server, DHCP, Client, DHCP Relay Agent
Static IP
MAC Clone
802.1q VLAN
Schedule Auto-Reboot, Wi-Fi Up/Down, LED On/Off
Management
Local Service HTTP, HTTPS, Telnet
Configuration Stand Alone, TR-069 (VigorACS), VigorRouter APM, VigorAP Mesh Root
Firmware Upgrade HTTP, TFTP, TR-069
Tools Speed Test, AP Discovery, Statistics, DHCP Table, Interference Monitor
Configuration Backup and Restore
Notification Alert E-mail
SNMP v2, v2c, v3
Syslog
Managed by VigorConnect
Managed by VigorACS
Central AP Management 20 VigorAP
物理特性
適用環境 室內
安裝方式 吸頂式, 壁掛式
供電方式 DC 12V @ 1A / 802.3af/at PoE
最大電耗 10 watts
尺寸 176mm x 176mm x 30mm
重量 307 g
操作溫度範圍 0 至 45°C
儲存溫度範圍 -20 至 60°C
操作濕度範圍 10 至 90% non-condensing
安規認證 CE FCC NCC BSMI
NCC 證號 CCAJ19LP7940T4
