房東出租套房網路為什麼一定要買UBS-5324z
因為他可以隔離分開每一間房間網路
也不怕亂插分享器干擾到別間房客的網路
也可以防止線路迴圈 Loop

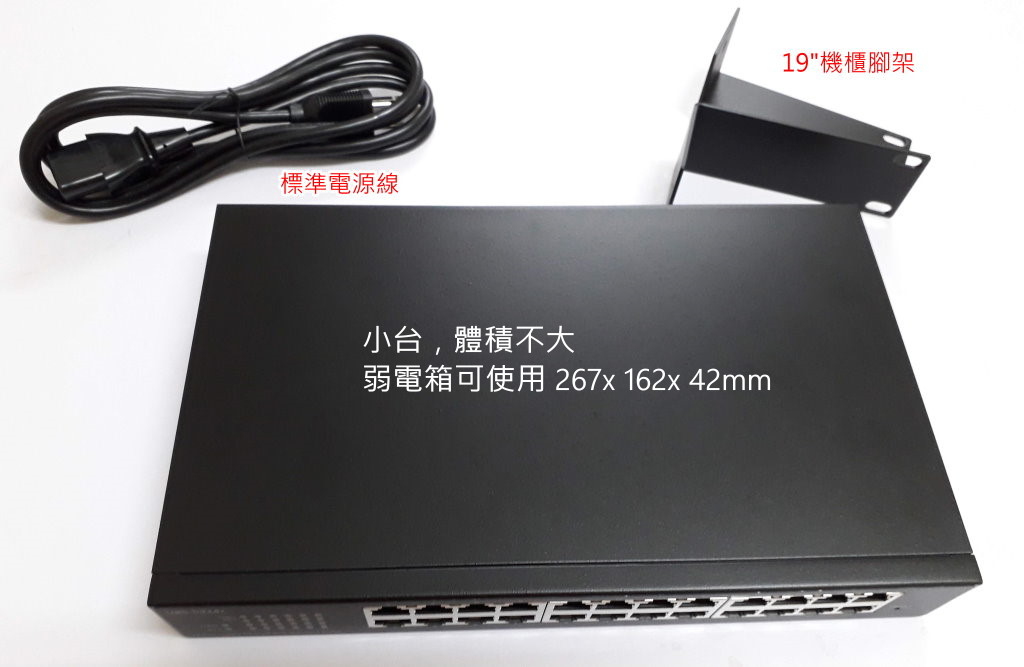

弱電箱可使用 267x 162x 42mm
24 port RJ-45 10/100/1000Mbps網管交換器
支援 MDI/MDI-X 自動跳線
支援 NWay protocol and auto-detection
相容IEEE802.3, 802.3u, 802.3ab Ethernet standards
支援 IEEE802.3x Flow Control and Back-Pressure control
支援 STP & RSTP (防Loop功能)
支援 LLDP Discovery
支援 VLAN : Static, Group, Tag Based, Voice OUI mode
支援 QoS : Priority Queue, Rate Limit, Queue Scheduling, Class of Service
支援 Security : Storm Control, HTTPS and SSL 2.0, Account Manager, Management VLAN, DoS attack prevention
支援 IPv6 : IPv6 Host and IPv6 Application
支援 Management : CLI (Console, Telnet), Web UI (HTTP and HTTPS), SNMP v1/v2c, MIBs (MIBII & RMON I(1,2,3,9 groups))
支援 Storm Filter (Broadcast, Unknown Multicast, Unknown Unicast)
支援 8 queues is handled SP and WRR
支援 Jumbo Frame : 1518~10K Bytes
支援 8 Link Aggregation Groups with Static & LACP types
支援 port mirroring鏡像 , Copper Testing
支援 IGMP Snooping v2/v3
支援 IEEE802.3az EEE enable and disable
支援韌體更新和備份功能
支援設定檔備份和還原功能
Standard
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.3az, IEEE 802.1p standards
Interface
24 * 10/100/1000Mbps RJ-45 NWay ports
1 * Power on/off switch
1 * Reset to default setting button
Rich LED indicators
Power (Green)
System (Green)
Per Port: Link/Act(Green)
MAC Address Table
8K
Jumbo Frame
10K Bytes
Buffer Memory
524.8K Bytes
Emission & Safety 認證安規
BSMI
Operating Temperature(操作溫度)
0度c- 50度c (32度F- 122度F)
Operating Humidity
10% ~ 90%RH (non-condensing)
Dimension(體積大小)
267x 162x 42mm
Power Supply
100~240VAC input, 50/60Hz.
可替代
ZZ-8024n
UBS-2016
UBS-3024
UBS-2024G
UBS-5324
台中出租套房網路設備規劃現貨供應
