NGF-762 產地:台灣製,光纖轉換器

型號選擇

  • NGF-762MC 多模SC
  • NGF-762SC 單模SC

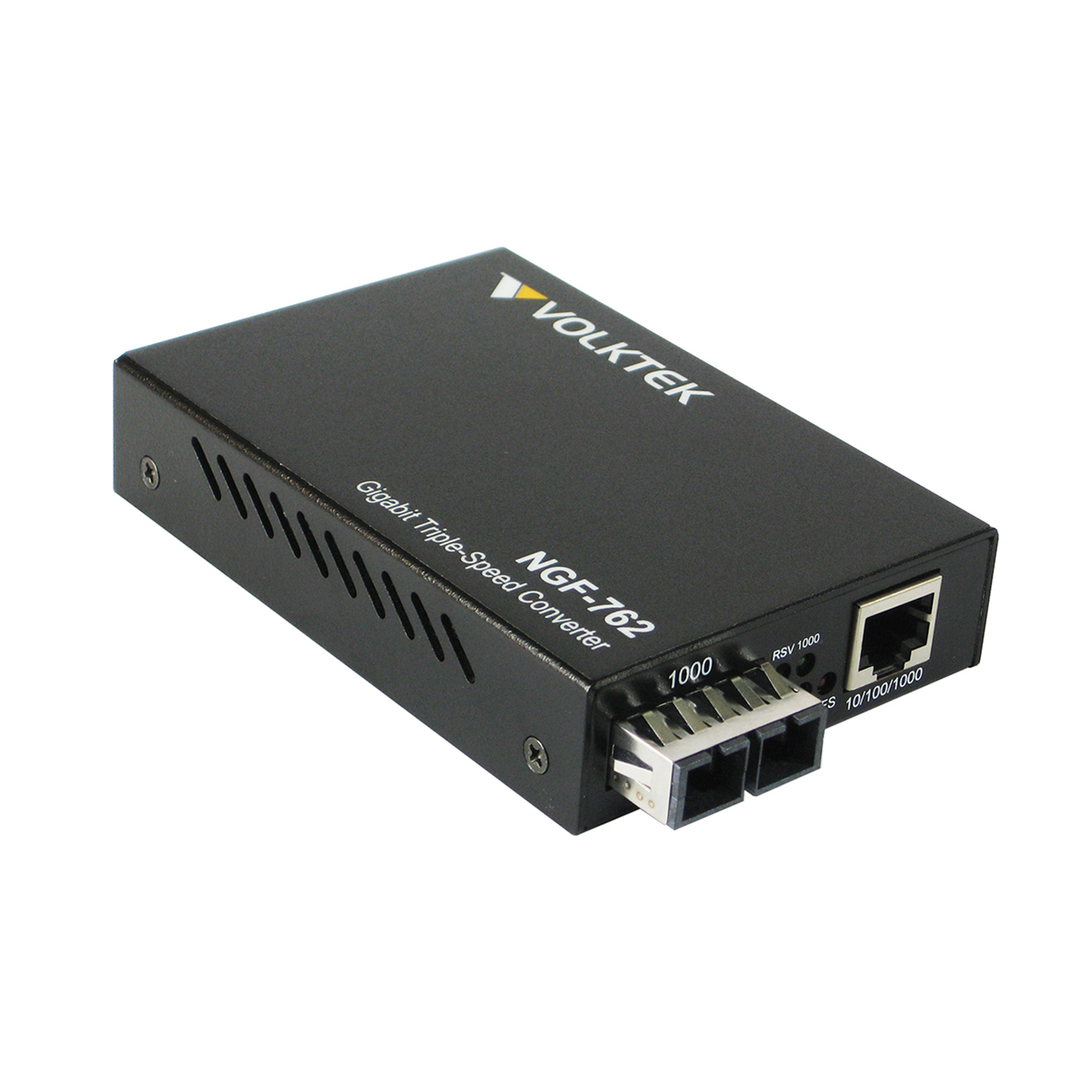

NGF-762 10/100/1000 to 1000SX/LX (SFP) media converter offers plug-n-play fiber connectivity to Telco/ISP, cable TV network, bank, and enterprise networks. It is compliant with RoHS (Restriction of Hazardous Substances) and works with both copper and fiber media, allowing fiber cables to be placed anywhere within a network without changing the copper-based Gigabit segments. It is compact and can be wall-mounted. Several converters can be installed together using the NXF-717 4-slot 19" rack-mountable chassis. It supports auto-negotiation, eliminating manual configuration and monitoring.

  • Auto MDI/MDI-X (medium dependent interface / MDI crossover)
  • Auto-negotiation (N Way protocol) support on RJ45
  • Fiber link failure alarm
  • Link fault signaling
  • LEDs for at-a-glance device status







Standards
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/FX
IEEE 802.3ab 1000BASE-T
IEEE 802.3uz 1000BASE-SX/LX


Power
Input Voltage 12V DC/0.23A
Power Consumption 2.8W


Interface
Ports 1 x 1000BASE-FX (SFP)
1x 10/100/1000BASE-T (RJ-45)
Maximum Distances Fiber Optic Up to 80km
RJ-45 100m


Mechanical and Environment
Operating Temperature 0ºC to 50ºC
Storage Temperature -20ºC to 70ºC
Operating Humidity 10 to 80% RH (non-condensing)
Storage Humidity 5 to 90% RH (non-condensing)
Dimension (WxHxD) 109 x 23 x 74 mm
Weight 150g
